Electric charging station "Vityaz EC-401-15"
New
Characteristics
Purpose
—
Charging electric vehicles
Application
—
Public, outdoor (installed in parking lots, parking lots, etc.)
Charging type
—
Mode 4
Input voltage
—
400 V ± 10%, 3 phases, 85 A, 50 Hz ± 10%
Station access
—
RFID card (13.56 MHz), NFC card, Mobile app
Safety
—
Differential switch, Connectors are de-energized when plugged in, Surge protection, Control voltages 12 V, 24 V
Degree of protection
—
IP54
Output voltage
—
from 200 to 1000 V, 125 A
Status indication
—
tricolor, LED
Electricity meter
—
Electricity meters that are in the register of measuring instruments of the Republic of Belarus., DC output counter
Electric charging station "Vityaz EC-401-15"

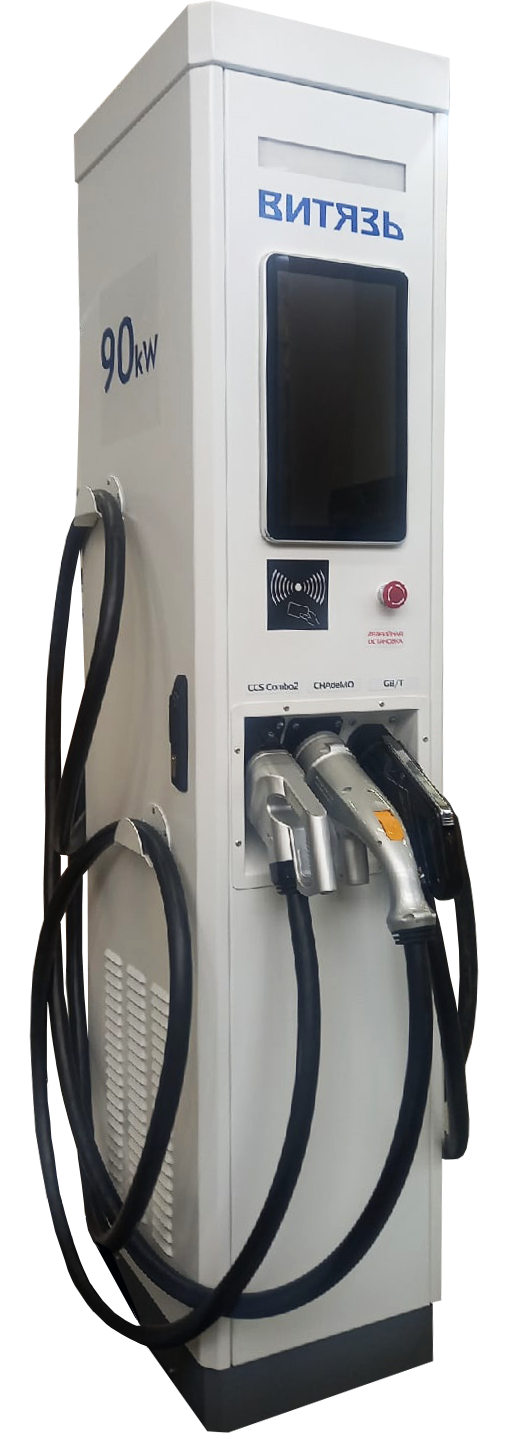

Stationary electric charging station "Vityaz EC-401-15" is designed to charge electric vehicles with direct current in Mode 4 mode, equipped with CCS Combo 2 or CHAdeMO connectors.
Characteristics
Purpose
|
Charging electric vehicles |
Application
|
Public, outdoor (installed in parking lots, parking lots, etc.) |
Charging type
|
Mode 4 |
Input voltage
|
400 V ± 10%, 3 phases, 85 A, 50 Hz ± 10% |
Station access
|
RFID card (13.56 MHz), NFC card, Mobile app |
Safety
|
Differential switch, Connectors are de-energized when plugged in, Surge protection, Control voltages 12 V, 24 V |
Degree of protection
|
IP54 |
Output voltage
|
from 200 to 1000 V, 125 A |
Status indication
|
tricolor, LED |
Electricity meter
|
Electricity meters that are in the register of measuring instruments of the Republic of Belarus., DC output counter |
Dimensions (WxDxH), mm
|
660*560*1851 |
Rated output power, kW
|
50 |
