Dry air thermostat TSV80-01V
Characteristics
Chamber volume, dm3
—
80
Overall dimensions of the chamber (W*H*D), mm, not less than
—
395*565*360 (internal dimensions)
Overall dimensions (W*H*D), mm, no more
—
595*900*615
Number of cassettes, pcs
—
2
Power consumption in heating mode, no more than, kW
—
0,5
Temperature in the chamber, °С
—
from (tamb+5) to +60
Accuracy of temperature stabilization at the control point (in time), °C, not more than
—
± 0,4
Accuracy of temperature stabilization by volume, °С, max
—
± 1,0
Temperature setting resolution, °C
—
0,1
Time setting resolution, min
—
1
Dry air thermostat TSV80-01V
The dry-air thermostat TSV80-01V is designed to create and maintain a stable temperature inside the working chamber, which is necessary for bacteriological, serological, immunological and other studies. Thermostat TSV80-01V can be used for serum inactivation when setting up serological reactions.
Benefits:
Benefits:
- stainless steel chamber;
- the presence of a viewing window in the door;
- touch-sensitive information graphic display;
- forced air mixing in the chamber;
- quick exit to the set mode;
- USB interface;
- the ability to work with a computer;
- height-adjustable legs.
Characteristics
|
Chamber volume, dm3
|
80 |
|
Overall dimensions of the chamber (W*H*D), mm, not less than
|
395*565*360 (internal dimensions) |
|
Overall dimensions (W*H*D), mm, no more
|
595*900*615 |
|
Number of cassettes, pcs
|
2 |
|
Power consumption in heating mode, no more than, kW
|
0,5 |
|
Temperature in the chamber, °С
|
from (tamb+5) to +60 |
|
Accuracy of temperature stabilization at the control point (in time), °C, not more than
|
± 0,4 |
|
Accuracy of temperature stabilization by volume, °С, max
|
± 1,0 |
|
Temperature setting resolution, °C
|
0,1 |
|
Time setting resolution, min
|
1 |
|
Thermostat heating time from 35 to 60 °C, without loaded shelves, min, no more
|
60 |
|
Interface
|
USB |
|
Type of medical equipment
|
laboratory equipment |
|
Weight, kg
|
60 |

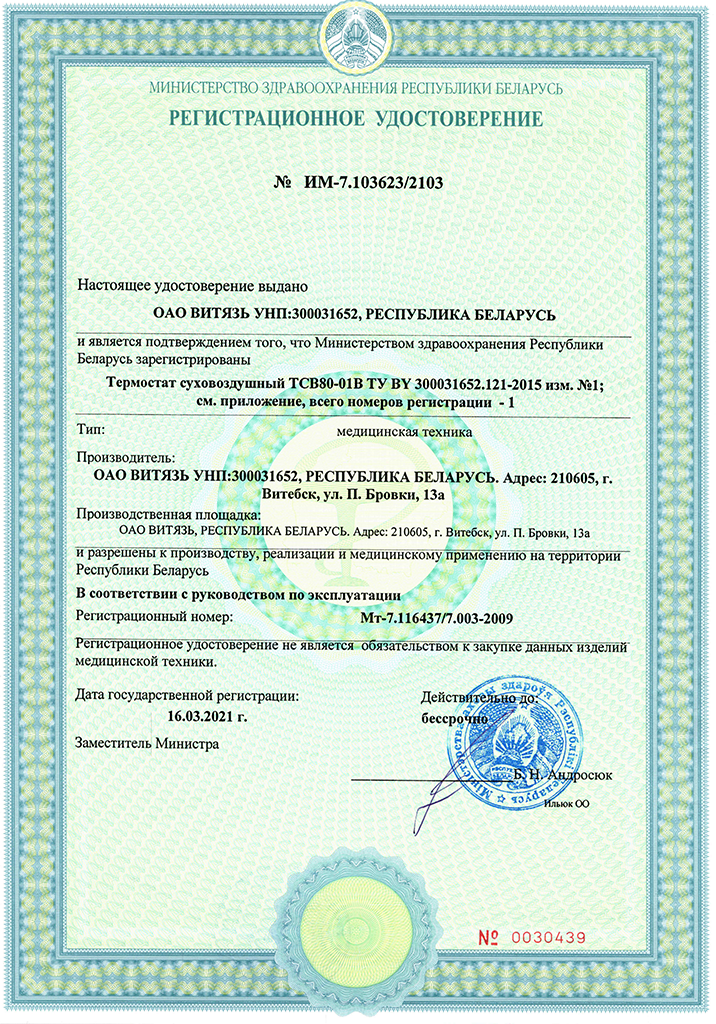

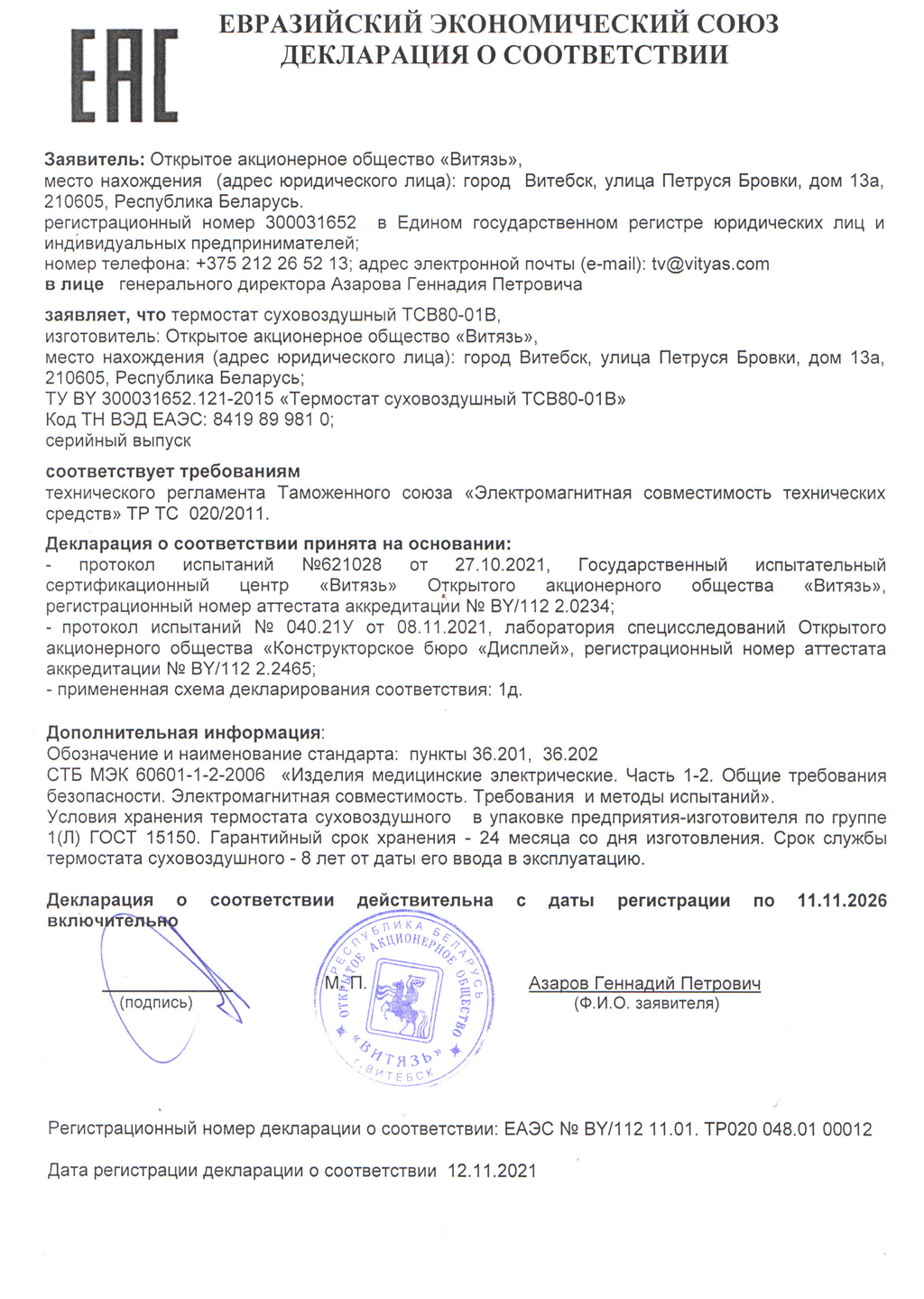

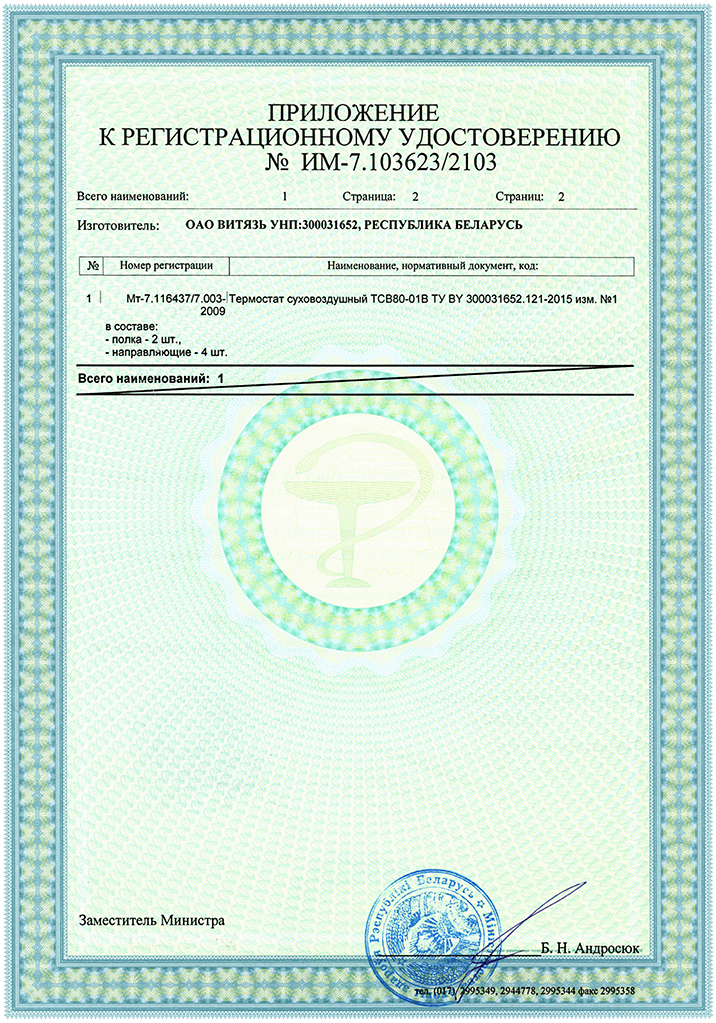

Documents
