Steam sterilizer GK-10V
Characteristics
Purpose
—
Sterilizers GK-24V is designed for sterilization of unpackaged solid products (sterilization cycle type N)
Chamber volume, dm3
—
9,6
Overall dimensions (W*H*D), mm, no more
—
650*360*500
Power consumption in heating mode, no more than, kW
—
3,25
Type of medical equipment
—
Steam sterilizers
Steam sterilizer GK-10V
Steam sterilizer GK-10V, designed for sterilization with saturated steam under pressure of medical instruments and other medical products. The sterilizer ensures the execution of sterilization programs in automatic mode under the control of a microprocessor.
In the GK-10V sterilizer there is a drying of sterilized products. Drying is carried out at atmospheric pressure with the door ajar and does not ensure the sterility of unpackaged sterilization objects.
When determining the sterilizer loading rates, it must be taken into account that the GK-10V sterilizer does not have a vacuum (preliminary removal of air from the sterilization chamber is carried out by the gravitational method), i.e. belongs to the class "N" in accordance with the classification of steam sterilizers according to the European standard EN 13060.
In the GK-10V sterilizer there is a drying of sterilized products. Drying is carried out at atmospheric pressure with the door ajar and does not ensure the sterility of unpackaged sterilization objects.
When determining the sterilizer loading rates, it must be taken into account that the GK-10V sterilizer does not have a vacuum (preliminary removal of air from the sterilization chamber is carried out by the gravitational method), i.e. belongs to the class "N" in accordance with the classification of steam sterilizers according to the European standard EN 13060.

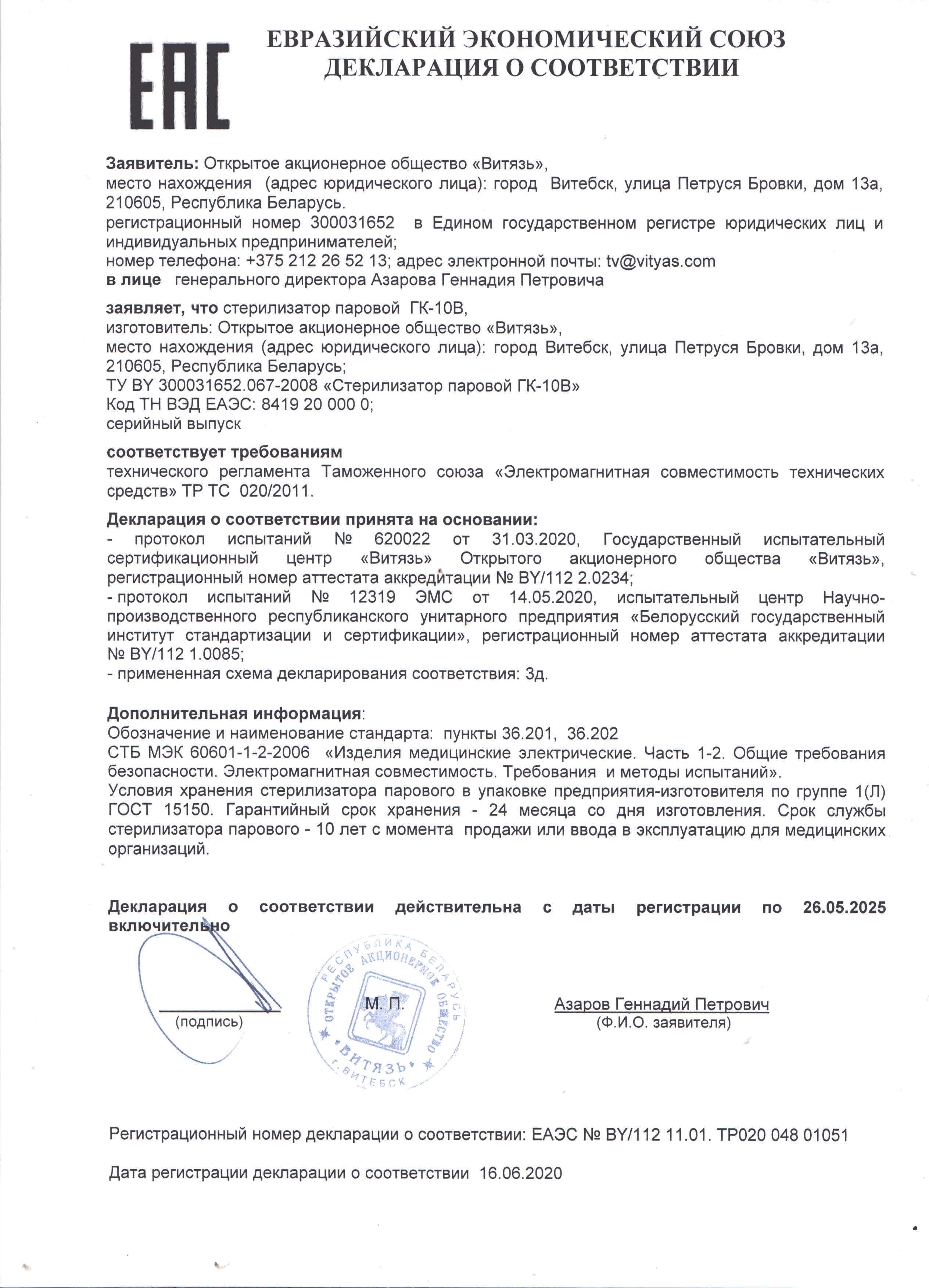

Documents
